Unidad de Alta Temperatura FRASCOLD SPA
La unidad de tornillo de alta temperatura FRASCOLD SPA es una solución de refrigeración integrada diseñada para aplicaciones de temperatura de evaporación media a alta, con una optimización específica en la estructura del sistema, la estabilidad operativa y la configuración integral. La unidad adopta un diseño compacto e integrado, que combina el compresor de tornillo, el sistema de separación de aceite, los dispositivos de refrigeración y los sistemas de control en una unidad altamente cohesiva. Este diseño no sólo garantiza un rendimiento de refrigeración óptimo sino que también ahorra espacio de forma eficaz en la sala de máquinas. La configuración integrada simplifica el proceso de instalación in situ y proporciona condiciones convenientes para el mantenimiento y servicio posteriores, lo que la hace ideal para proyectos de refrigeración donde la utilización del espacio y la gestión de equipos son consideraciones clave.
En cuanto a la configuración de energía central, la unidad está equipada con compresores de tornillo semiherméticos de reconocidas marcas nacionales e internacionales. Estos compresores cuentan con tecnología madura, eficiencia operativa estable y son capaces de funcionar de manera sostenida y continua en condiciones de temperatura media a alta. Los compresores están diseñados para minimizar las vibraciones y reducir los niveles de ruido, lo que ayuda a mejorar el entorno de trabajo de la sala de máquinas y reduce el impacto en las zonas circundantes. El diseño mecánico estable también contribuye a prolongar la vida útil de los compresores, reduciendo la frecuencia de mantenimiento durante el funcionamiento.
Introducción a los parámetros del equipo
Vista detallada
Contáctenos
Introducción a los parámetros del equipo
| Modelo de unidad | Modelo Com. | Com. Curtidad | Condensación temperatura (℃) | Temperatura de evaporación. (℃) | depósito (L) | Suministro tubo (mm) | succión tubo (mm) | salida de gas tubo (mm) | liquidooo tubo de entrada (mm) | Dimensión (mm) (largo x ancho x alto) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-FSF-40H | RTSH-40 -120Y (40 CV) | 1 | 35 | 60.6 | 21.5 | 23.4 | 22.2 | 88.3 | 23.4 | 1053 | 24.9 | 124.7 | 26.4 | 60 | Φ28 | Φ54 | Φ42 | Φ28 | 2300×1000×1500 |
| 40 | 54.2 | 25.6 | 66.2 | 26.1 | 79.9 | 27.1 | 95.7 | 28.4 | 113.7 | 29.9 | |||||||||
| 45 | 46.6 | 31.1 | 57.6 | 31.2 | 70.1 | 32.5 | 84.5 | 34.0 | 100.9 | 35.6 | |||||||||
| LXPL-BFSF2 -80H | 2 | 35 | 121.2 | 43.0 | 146.8 | 44.4 | 176.6 | 46.8 | 210.6 | 49.8 | 299.4 | 52.8 | 120 | Φ28 | Φ89 | Φ54 | Φ35 | 2500×1800×1800 | |
| 40 | 108.4 | 51.2 | 132.4 | 52.2 | 159.8 | 54.2 | 191.4 | 56.8 | 227.4 | 59.8 | |||||||||
| 45 | 93.2 | 62.2 | 115.2 | 62.4 | 140.2 | 65.0 | 169.0 | 68.0 | 201.8 | 71.2 | |||||||||
| LXPL-BFSF3 -120H | 3 | 35 | 181.8 | 64.5 | 202.2 | 66.6 | 264.9 | 70.2 | 315.9 | 74.7 | 374.1 | 79.2 | 150 | Φ35 | Φ76×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 162.6 | 76.8 | 198.6 | 78.3 | 239.7 | 81.3 | 287.1 | 85.2 | 341.1 | 89.7 | |||||||||
| 45 | 139.8 | 93.3 | 172.8 | 93.6 | 210.3 | 97.5 | 253.5 | 102.0 | 302.7 | 106.8 | |||||||||
| LXPL-BFSF4 -160H | 4 | 35 | 242.4 | 86.0 | 293.6 | 88.8 | 353.2 | 931.6 | 421.2 | 99.6 | 498.8 | 150.6 | 200 | Φ35 | Φ89×2 | Φ89 | Φ42 | 3900×1800×1800 | |
| 40 | 216.8 | 102.4 | 264.8 | 104.4 | 319.6 | 108.4 | 382.8 | 113.6 | 454.8 | 119.6 | |||||||||
| 45 | 186.4 | 124.4 | 230.4 | 124.8 | 280.4 | 130.0 | 338.0 | 136.0 | 403.6 | 142.4 | |||||||||
| LXPL-FSF-50H | RTSH-50 -150Y (50 CV) | 1 | 35 | 74.8 | 24.9 | 90.8 | 26.0 | 109.2 | 27.2 | 130.3 | 28.3 | 154.6 | 29.1 | 80 | Φ28 | Φ89 | Φ42 | Φ22 | 2300×1000×1500 |
| 40 | 67.4 | 29.1 | 82.1 | 30.8 | 99.1 | 31.5 | 118.6 | 33.0 | 140.9 | 34.5 | |||||||||
| 45 | 59.7 | 37.2 | 73.1 | 37.7 | 88.6 | 38.9 | 106.4 | 40.5 | 126.8 | 42.4 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 149.6 | 49.8 | 181.6 | 52.0 | 218.4 | 54.4 | 260.6 | 56.6 | 309.2 | 58.2 | 150 | Φ28 | Φ89 | Φ89 | Φ35 | 2500×1800×1800 | |
| 40 | 134.8 | 58.2 | 164.2 | 61.6 | 198.2 | 63.0 | 237.2 | 66.0 | 281.8 | 69.0 | |||||||||
| 45 | 119.4 | 74.4 | 146.2 | 75.4 | 177.2 | 77.8 | 252.8 | 81.0 | 753.6 | 84.8 | |||||||||
| LXPL-FSF3 -150H | 3 | 35 | 224.4 | 74.7 | 272.4 | 78.0 | 327.6 | 81.6 | 39.09 | 84.9 | 463.8 | 87.3 | 200 | Φ35 | Φ89 ×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 202.2 | 87.3 | 246.3 | 92.4 | 297.3 | 94.5 | 3558 | 99.0 | 422.7 | 103.5 | |||||||||
| 45 | 179.1 | 111.6 | 219.3 | 113.1 | 256.8 | 116.7 | 319.2 | 121.5 | 380.4 | 127.2 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 299.2 | 99.6 | 363.2 | 104.0 | 436.0 | 108.8 | 521.2 | 113.2 | 618.4 | 117.6 | 250 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3900×1800×1800 | |
| 40 | 2696 | 116.4 | 328.4 | 123.2 | 396.4 | 126.0 | 474.4 | 132.0 | 563.6 | 138.0 | |||||||||
| 45 | 238.8 | 148.8 | 297.4 | 150.8 | 354.4 | 155.6 | 425.6 | 1620 | 507.2 | 169.6 | |||||||||
| LXPL-FSF-50H | NRH2-60 -186Y (60 CV) | 1 | 35 | 92.5 | 30.6 | 112.2 | 31.6 | 135.0 | 33.1 | 161.2 | 34.4 | 191.2 | 35.6 | 80 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 82.6 | 35.7 | 100.7 | 36.7 | 121.7 | 38.1 | 145.7 | 39.7 | 173.2 | 41.3 | |||||||||
| 45 | 71.0 | 43.2 | 87.7 | 44.2 | 106.8 | 45.7 | 128.8 | 47.6 | 153.4 | 50.0 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 185.0 | 61.2 | 224.4 | 63.2 | 270.0 | 66.2 | 322.4 | 68.8 | 382.4 | 71.2 | 200 | Φ35 | Φ108 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 165.2 | 71.4 | 201.4 | 73.4 | 243.4 | 76.2 | 291.4 | 79.4 | 346.4 | 82.4 | |||||||||
| 45 | 142.0 | 86.4 | 175.4 | 88.4 | 213.6 | 91.4 | 257.6 | 95.2 | 306.8 | 100.0 | |||||||||
| LXPL-BFSF3 -150H | 3 | 35 | 277.5 | 91.8 | 336.6 | 94.8 | 405.0 | 99.3 | 483.6 | 103.2 | 573.6 | 106.8 | 250 | Φ42 | Φ108 ×2 | Φ89 | Φ54 | 4100×1950×1750 | |
| 40 | 247.8 | 107.1 | 302.1 | 110.1 | 365.1 | 114.3 | 437.1 | 119.1 | 519.6 | 123.6 | |||||||||
| 45 | 213.0 | 129.6 | 263.1 | 132.6 | 320.4 | 137.1 | 386.4 | 142.8 | 460.2 | 150.0 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 370.0 | 122.4 | 448.8 | 126.4 | 540.0 | 132.4 | 644.8 | 137.6 | 764.8 | 142.4 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4950×1950×1800 | |
| 40 | 330.4 | 142.8 | 402.8 | 146.8 | 488.8 | 157.4 | 582.8 | 158.8 | 692.8 | 164.8 | |||||||||
| 45 | 284.0 | 172.8 | 350.8 | 176.8 | 427.2 | 182.8 | 515.2 | 190.4 | 613.6 | 200.0 | |||||||||
| Modelo de unidad | Modelo de cámara | cámara, Cuartidad | Condensación temperatura (℃） | Temperatura de evaporación (℃) | depósito (L) | Suministro tubo (mm) | succión tubo (mm) | salida de gas tubo (mm) | liquidooo tubo de entrada (mm) | Dimensión (mm) (Largo x ancho x alto) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-FSF-70H | NRH2-70 -210Y (70 CV) | 1 | 35 | 103.3 | 33.9 | 126.3 | 35.7 | 153.0 | 37.4 | 183.7 | 38.7 | 218.9 | 394 | 100 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 91.0 | 39.2 | 111.9 | 41.3 | 136.1 | 43.6 | 163.9 | 45.7 | 195.8 | 47.5 | |||||||||
| 45 | 78.1 | 46.6 | 97.0 | 48.7 | 118.7 | 51.2 | 143.7 | 53.8 | 172.3 | 56.4 | |||||||||
| LXPL-BFSF2 -140H | 2 | 35 | 206.6 | 67.8 | 252.6 | 71.4 | 306.0 | 74.8 | 367.4 | 77.4 | 437.8 | 78.8 | 200 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×1800×1800 | |
| 40 | 182.0 | 78.4 | 223.8 | 82.6 | 272.2 | 87.2 | 327.8 | 91.4 | 391.6 | 95.0 | |||||||||
| 45 | 156.2 | 93.2 | 194.0 | 97.4 | 237.4 | 102.4 | 287.4 | 107.6 | 344.6 | 112.8 | |||||||||
| LXPL-BFSF3 -210H | 3 | 35 | 309.9 | 101.7 | 378.9 | 107.1 | 459.0 | 112.2 | 551.1 | 116.1 | 656.7 | 118.2 | 300 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×1850×1800 | |
| 40 | 273.0 | 117.6 | 335.7 | 123.9 | 408.3 | 130.8 | 491.7 | 137.1 | 587.4 | 142.5 | |||||||||
| 45 | 156.2 | 139.8 | 291.0 | 146.1 | 356.1 | 153.6 | 431.1 | 161.4 | 516.9 | 169.2 | |||||||||
| LXPL-BFSF4 -280H | 4 | 35 | 413.2 | 135.6 | 505.2 | 142.8 | 612.0 | 149.6 | 734.8 | 154.8 | 875.6 | 157.6 | 400 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3900×1850×1800 | |
| 40 | 364.0 | 156.8 | 447.6 | 165.7 | 544.4 | 174.4 | 655.6 | 182.8 | 783.2 | 190.0 | |||||||||
| 45 | 312.4 | 186.4 | 388.0 | 194.8 | 474.8 | 240.8 | 574.8 | 215.2 | 689.2 | 225.6 | |||||||||
| LXPL-FSF-80H | NRH3-80 -240Y (80 CV) | 1 | 35 | 123.0 | 38.9 | 149.3 | 40.7 | 179.6 | 43.7 | 214.5 | 46.2 | 254.2 | 49.4 | 150 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 109.0 | 46.5 | 132.9 | 47.8 | 160.5 | 50.6 | 192.2 | 52.7 | 228.5 | 55.6 | |||||||||
| 45 | 94.3 | 56.6 | 115.9 | 58.2 | 140.6 | 60.9 | 169.1 | 641.1 | 201.6 | 67.6 | |||||||||
| LXPL-BFSF2 -160H | 2 | 35 | 246.0 | 77.8 | 298.6 | 81.4 | 359.2 | 87.4 | 429.0 | 92.4 | 508.4 | 98.8 | 250 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 218.0 | 93.0 | 265.8 | 95.6 | 321.0 | 100.2 | 384.4 | 150.4 | 457.0 | 111.2 | |||||||||
| 45 | 188.6 | 113.2 | 231.8 | 116.4 | 261.2 | 121.8 | 338.2 | 128.2 | 403.2 | 1352 | |||||||||
| LXPL-FSF3 -240H | 3 | 35 | 369.0 | 116.7 | 447.9 | 122.1 | 538.8 | 131.1 | 643.5 | 138.6 | 762.6 | 148.2 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4100×1950×1800 | |
| 40 | 327.0 | 139.5 | 398.7 | 143.4 | 481.5 | 151.8 | 576.6 | 158.1 | 685.5 | 166.8 | |||||||||
| 45 | 282.9 | 169.8 | 347.7 | 174.6 | 421.8 | 182.7 | 507.3 | 192.3 | 604.8 | 202.6 | |||||||||
| LXPL-BFSF4 -320H | 4 | 35 | 492.0 | 155.6 | 597.2 | 162.8 | 718.4 | 174.8 | 858.0 | 184.8 | 1016.8 | 197.6 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 4950×1950×1800 | |
| 40 | 436.0 | 186.0 | 531.6 | 191.2 | 642.0 | 202.4 | 768.8 | 210.8 | 914.0 | 222.4 | |||||||||
| 45 | 377.2 | 226.4 | 463.6 | 232.8 | 562.4 | 243.6 | 676.4 | 256.4 | 806.4 | 270.4 | |||||||||
| LXPL-FSF-90H | NRH3-90 -270Y (90 CV) | 1 | 35 | 137.2 | 44.5 | 166.9 | 246.6 | 201.3 | 49.2 | 240.9 | 52.0 | 286.2 | 54.6 | 150 | Φ28 | Φ89 | Φ67 | Φ28 | 2600×1000×1500 |
| 40 | 121.2 | 52.4 | 148.4 | 54.3 | 179.8 | 56.9 | 215.9 | 60.0 | 257.2 | 63.0 | |||||||||
| 45 | 104.8 | 63.3 | 129.2 | 65.4 | 157.3 | 68.4 | 189.7 | 72.0 | 226.7 | 75.7 | |||||||||
| LXPL-BFSF2 -180H | 2 | 35 | 274.4 | 89.0 | 333.8 | 93.2 | 402.6 | 98.4 | 481.8 | 104.0 | 572.4 | 109.2 | 250 | Φ42 | Φ133 | Φ89 | Φ54 | 2500×2000×1850 | |
| 40 | 242.4 | 104.8 | 296.8 | 108.6 | 359.6 | 113.8 | 431.8 | 120.0 | 514.4 | 126.0 | |||||||||
| 45 | 209.6 | 126.6 | 258.4 | 130.8 | 314.0 | 136.8 | 379.4 | 144.0 | 453.4 | 151.4 | |||||||||
| LXPL-BFSF3 -270H | 3 | 35 | 411.6 | 133.5 | 500.7 | 139.8 | 803.9 | 147.6 | 722.7 | 156.0 | 858.0 | 163.8 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×2100×1900 | |
| 40 | 363.6 | 157.2 | 445.2 | 162.9 | 539.4 | 170.7 | 647.7 | 180.0 | 771.6 | 189.0 | |||||||||
| 45 | 314.4 | 189.9 | 387.6 | 196.2 | 471.9 | 205.2 | 569.1 | 216.0 | 680.1 | 227.1 | |||||||||
| LXPL-BFSF4 -360H | 4 | 35 | 548.8 | 178.0 | 676.6 | 186.4 | 805.2 | 196.8 | 963.6 | 208.0 | 1144.8 | 1218.4 | 500 | Φ54 | Φ133 ×2 | Φ133 | Φ67 | 4950×1950×1800 | |
| 40 | 484.8 | 209.6 | 593.6 | 217.2 | 719.2 | 227.6 | 863.6 | 240.01 | 1028.8 | 252.0 | |||||||||
| 45 | 419.2 | 253.2 | 516.8 | 261.6 | 629.2 | 273.6 | 758.8 | 288.0 | 906.8 | 302.8 | |||||||||
| Modelo de unidad | Modelo Com. | Com. Curtidad | Condensación temperatura (℃) | Temperatura de evaporación. (℃) | depósito (L) | Suministro tubo (mm) | succión tubo (mm) | salida de gas tubo (mm) | liquidooo tubo de entrada (mm) | Dimensión (mm) (largo x ancho x alto) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-FSF -100H | NRH4-100 -300Y (100 CV) | 1 | 35 | 152.5 | 47.9 | 185.3 | 50.0 | 223.3 | 52.9 | 267.0 | 55.9 | 316.9 | 58.8 | 150 | Φ35 | Φ89 | Φ67 | Φ35 | 2600×1000×1500 |
| 40 | 135.1 | 56.5 | 165.1 | 58.6 | 199.8 | 61.5 | 240.0 | 64.8 | 285.2 | 68.3 | |||||||||
| 45 | 116.9 | 68.5 | 143.9 | 70.9 | 175.0 | 74.2 | 210.9 | 78.3 | 252.0 | 82.6 | |||||||||
| LXPL-BFSF2 -200H | 2 | 35 | 305.0 | 95.8 | 370.6 | 100.0 | 446.6 | 105.8 | 534.0 | 111.8 | 633.8 | 117.6 | 300 | Φ42 | Φ133 | Φ108 | Φ54 | 2500×2100×1850 | |
| 40 | 270.2 | 113.0 | 330.2 | 117.2 | 399.6 | 123.0 | 480.0 | 129.6 | 570.4 | 133.6 | |||||||||
| 45 | 233.8 | 137.0 | 287.8 | 141.8 | 350.0 | 148.4 | 421.8 | 156.6 | 504.0 | 165.2 | |||||||||
| LXPL-BFSF3 -300H | 3 | 35 | 457.5 | 143.7 | 555.9 | 150.0 | 669.9 | 158.7 | 801.0 | 167.7 | 950.7 | 176.4 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3200×2150×1900 | |
| 40 | 405.3 | 169.5 | 395.3 | 175.8 | 599.4 | 184.5 | 720.0 | 194.4 | 855.6 | 204.9 | |||||||||
| 45 | 350.7 | 205.5 | 431.7 | 212.7 | 525.0 | 222.6 | 632.1 | 234.9 | 756.0 | 247.8 | |||||||||
| LXPL-BFSF4 -400H | 4 | 35 | 610.0 | 191.6 | 741.2 | 200.0 | 893.2 | 211.6 | 106.8 | 223.6 | 1267.6 | 235.2 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 1950×1950×1800 | |
| 40 | 540.4 | 266.0 | 660.4 | 234.4 | 799.2 | 246.0 | 960.0 | 259.2 | 1140.8 | 273.2 | |||||||||
| 45 | 467.6 | 274.0 | 575.6 | 283.6 | 700.0 | 296.8 | 843.6 | 313.2 | 1008.0 | 330.4 | |||||||||
| LXPL-FSF -120H | NRH5-120 -360Y (120 CV) | 1 | 35 | 181.7 | 55.9 | 221.4 | 58.6 | 267.5 | 61.7 | 320.6 | 64.9 | 381.2 | 67.7 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 160.8 | 65.1 | 197.0 | 67.5 | 238.9 | 70.8 | 287.0 | 74.6 | 342.1 | 78.2 | |||||||||
| 45 | 1392 | 78.1 | 171.7 | 80.7 | 2093 | 84.7 | 252.5 | 89.4 | 302.0 | 94.5 | |||||||||
| LXPL-BFSF2 -240H | 2 | 35 | 3634 | 111.8 | 442.8 | 117.2 | 535.0 | 123.4 | 641.2 | 129.8 | 762.4 | 135.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×2000×1250 | |
| 40 | 321.6 | 130.2 | 394.0 | 135.0 | 477.8 | 141.6 | 514.0 | 149.2 | 684.2 | 156.4 | |||||||||
| 45 | 278.4 | 156.2 | 343.4 | 161.4 | 418.6 | 169.4 | 505.0 | 178.8 | 604.0 | 189.0 | |||||||||
| LXPL-FSF3 -360H | 3 | 35 | 545.1 | 167.7 | 664.2 | 175.8 | 802.5 | 185.1 | 961.8 | 194.7 | 1143.6 | 703.1 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 482.4 | 195.3 | 591.0 | 202.5 | 716.7 | 212.4 | 861.0 | 223.8 | 1026.3 | 234.6 | |||||||||
| 45 | 417.6 | 234.3 | 515.1 | 242.1 | 627.9 | 254.1 | 757.5 | 268.2 | 906.0 | 283.5 | |||||||||
| LXPL-BFSF4 -480H | 4 | 35 | 726.8 | 233.6 | 885.6 | 234.4 | 1070.0 | 246.8 | 1282.4 | 259.6 | 1524.8 | 270.8 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 643.2 | 264.0 | 755.0 | 270.0 | 955.0 | 283.2 | 1148.0 | 298.4 | 1368.4 | 312.8 | |||||||||
| 45 | 556.8 | 312.4 | 686.8 | 322.8 | 837.2 | 338.8 | 1010.0 | 357.6 | 120.8 | 378.0 | |||||||||
| LXPL-FSF -110H | NRH6-110 -316Y (110 CV) | 1 | 35 | 136.8 | 50.9 | 204.2 | 52.6 | 251.1 | 54.7 | 301.5 | 57.3 | 352.2 | 60.3 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 137.6 | 61.4 | 173.5 | 63.2 | 217.8 | 65.3 | 267.5 | 67.7 | 319.4 | 70.2 | |||||||||
| 45 | 112.8 | 734 | 140.6 | 75.9 | 178.6 | 78.4 | 224.0 | 81.0 | 273.4 | 83.7 | |||||||||
| LXPL-BFSF2 -220H | 2 | 35 | 327.6 | 101.8 | 408.4 | 1052 | 502.2 | 109.4 | 603.0 | 114.6 | 704.4 | 120.6 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×2000×1850 | |
| 40 | 275.2 | 122.8 | 347.0 | 126.4 | 435.6 | 130.6 | 535.0 | 135.4 | 638.8 | 140.4 | |||||||||
| 45 | 225.6 | 164.8 | 281.2 | 151.8 | 357.2 | 156.8 | 448.0 | 162.0 | 546.8 | 167.4 | |||||||||
| LXPL-BFSF3 -330H | 3 | 35 | 491.4 | 152.7 | 612.6 | 157.8 | 753.3 | 164.1 | 904.5 | 171.9 | 1056.6 | 180.9 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 412.8 | 184.2 | 520.5 | 189.6 | 653.4 | 195.9 | 602.5 | 203.1 | 958.2 | 210.6 | |||||||||
| 45 | 338.4 | 220.2 | 421.8 | 227.7 | 535.8 | 235.2 | 672.0 | 243.0 | 820.0 | 751.1 | |||||||||
| LXPL-BFSF4 -440H | 4 | 35 | 655.2 | 203.6 | 816.8 | 210.4 | 1004.4 | 218.8 | 1206.0 | 229.2 | 1408.8 | 241.2 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 550.4 | 245.6 | 694.0 | 252.8 | 871.2 | 261.2 | 070.0 | 270.8 | 277.6 | 280.8 | |||||||||
| 45 | 451.2 | 293.6 | 552.4 | 303.6 | 714.4 | 313.6 | 896.0 | 324.0 | 1093.6 | 334.8 | |||||||||
| Modelo de unidad | Modelo Com. | Com. Curtidad | Condensación temperatura (℃） | Temperatura de evaporación. (℃) | depósito (L) | Suministro tubo (mm) | succión tubo (mm) | salida de gas tubo (mm) | liauid tubo de entrada (mm) | Dimensión (mm) (largo x ancho x alto) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-FSF-125H | NRH6-125 -372Y (125 CV) | 1 | 35 | 196.0 | 60.0 | 242.1 | 62.5 | 296.2 | 65.2 | 353.5 | 68.3 | 411.5 | 71.7 | 250 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 166.8 | 73.1 | 75.9 | 260.5 | 78.7 | 316.6 | 871.7 | 374.9 | 285.2 | 84.8 | |||||||||
| 45 | 135.6 | 88.0 | 172.0 | 91.7 | 217.9 | 95.2 | 270.4 | 98.5 | 326.5 | 101.7 | |||||||||
| LXPL-BFSF2-250H | 2 | 35 | 392.0 | 120.0 | 485.4 | 125.0 | 592.4 | 130.4 | 707.0 | 136.6 | 823.0 | 143.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×1800×1800 | |
| 40 | 333.6 | 146.2 | 419.0 | 151.8 | 521.0 | 157.4 | 633.2 | 163.4 | 749.8 | 169.6 | |||||||||
| 45 | 271.2 | 176.0 | 344.0 | 173.4 | 435.8 | 190.4 | 540.8 | 197.0 | 653.0 | 230.9 | |||||||||
| LXPL-BFSF3 -375H | 3 | 35 | 588.0 | 180.0 | 728.1 | 187.5 | 888.6 | 195.6 | 1060.5 | 204.9 | 1234.5 | 215.1 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 3200×1800×1800 | |
| 40 | 500.4 | 219.3 | 628.5 | 277.7 | 781.5 | 236.1 | 949.8 | 245.1 | 1124.7 | 254.4 | |||||||||
| 45 | 406.8 | 264.0 | 516.0 | 275.1 | 653.7 | 285.6 | 811.2 | 295.5 | 979.5 | 305.1 | |||||||||
| LXPL-BFSF4 -500H | 4 | 35 | 784.0 | 240.0 | 970.8 | 250.0 | 1184.8 | 260.8 | 1414.0 | 273.2 | 1646.0 | 286.8 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 3900×1800×1800 | |
| 40 | 667.2 | 292.4 | 638.0 | 303.6 | 1042.0 | 314.8 | 1266.4 | 326.8 | 1499.6 | 339.2 | |||||||||
| 45 | 542.4 | 352.0 | 688.0 | 368.8 | 871.6 | 380.8 | 1081.6 | 394.0 | 1306.0 | 406.8 | |||||||||
| LXPL-FSF -140H | NRH6-140 -428Y (140 CV) | 1 | 35 | 228.7 | 69.6 | 280.1 | 72.0 | 340.1 | 74.6 | 405.1 | 77.3 | 470.5 | 80.0 | 300 | Φ54 | Φ108 | Φ76 | Φ67 | 2300×1000×1500 |
| 40 | 199.5 | 85.0 | 247.8 | 87.9 | 305.4 | 90.6 | 368.7 | 93.2 | 434.3 | 95.6 | |||||||||
| 45 | 164.9 | 101.7 | 207.2 | 105.9 | 261.0 | 109.7 | 320.2 | 113.2 | 383.8 | 1116.2 | |||||||||
| LXPL-BFSF2 -280H | 2 | 35 | 457.4 | 139.2 | 561.42 | 144.0 | 681.4 | 149.2 | 810.2 | 154.6 | 941.0 | 160.0 | 500 | Φ67 | Φ139 | Φ108 | Φ76 | 2500×1800×1800 | |
| 40 | 399.0 | 170.0 | 495.6 | 175.8 | 610.8 | 181.2 | 737.4 | 186.4 | 868.6 | 191.2 | |||||||||
| 45 | 329.8 | 203.4 | 414.4 | 211.8 | 520.2 | 219.4 | 640.4 | 226.4 | 767.6 | 232.4 | |||||||||
| LXPL-FSF3 -420H | 3 | 35 | 686.1 | 208.8 | 842.1 | 216.0 | 1022.1 | 223.8 | 1215.3 | 231.9 | 1411.5 | 240.0 | 800 | Φ76 | Φ133 ×2 | Φ133 | Φ89 | 3200×1800×1800 | |
| 40 | 598.5 | 255.0 | 743.4 | 263.7 | 916.2 | 271.8 | 1106.1 | 279.6 | 1302.9 | 286.8 | |||||||||
| 45 | 494.7 | 305.1 | 621.6 | 317.7 | 780.3 | 239.1 | 960.6 | 339.6 | 1151.4 | 348.6 | |||||||||
| LXPL-BFSF4 -560H | 4 | 35 | 914.8 | 278.4 | 1122.8 | 288.0 | 1362.8 | 298.4 | 1621.6 | 309.2 | 1882.0 | 320.0 | 1000 | Φ89 | Φ159 ×2 | Φ159 | Φ108 | 3900×1800×1800 | |
| 40 | 798.0 | 340.0 | 991.2 | 351.6 | 1221.6 | 362.4 | 1474.8 | 372.8 | 1737.2 | 382.9 | |||||||||
| 45 | 659.6 | 406.8 | 828.8 | 423.6 | 1040.4 | 438.8 | 1280.8 | 452.8 | 1535.2 | 464.8 | |||||||||
| LXPL-FSF -160H | NRH6-160 -468Y (160 CV) | 1 | 35 | 250.4 | 76.1 | 306.7 | 78.7 | 371.3 | 81.5 | 441.3 | 84.5 | 513.7 | 87.5 | 300 | Φ54 | Φ159 | Φ108 | Φ67 | 2300×1000×1500 |
| 40 | 218.3 | 93.0 | 271.3 | 96.1 | 333.7 | 99.1 | 402.5 | 101.9 | 474.5 | 104.6 | |||||||||
| 45 | 180.2 | 111.2 | 227.5 | 115.8 | 285.2 | 120.0 | 350.2 | 123.8 | 419.3 | 127.1 | |||||||||
| LXPL-BFSF2 -320H | 2 | 35 | 500.8 | 152.2 | 613.4 | 157.4 | 742.6 | 163.0 | 882.6 | 169.0 | 1027.4 | 175.0 | 600 | Φ67 | Φ133 | Φ133 | Φ76 | 2500×2000×1850 | |
| 40 | 436.6 | 186.0 | 547.2 | 192.0 | 667.4 | 198.2 | 805.0 | 203.8 | 949.0 | 209.2 | |||||||||
| 45 | 360.4 | 222.4 | 455.0 | 231.6 | 570.4 | 240.0 | 700.4 | 247.6 | 838.6 | 254.2 | |||||||||
| LXPL-BFSF3 -480H | 3 | 35 | 751.2 | 228.3 | 921.0 | 236.1 | 1113.9 | 244.5 | 1323.9 | 253.5 | 1541.1 | 262.5 | 900 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4100×1950×1750 | |
| 40 | 654.9 | 279.0 | 813.9 | 288.3 | 1001.1 | 297.3 | 1207.5 | 305.7 | 1423.5 | 313.8 | |||||||||
| 45 | 540.6 | 333.6 | 682.5 | 347.4 | 855.6 | 360.0 | 1050.6 | 371.4 | 1257.9 | 381.3 | |||||||||
| LXPL-BFSF4 -640H | 4 | 35 | 1001.6 | 304.4 | 1276.8 | 314.8 | 1485.2 | 326.0 | 1765.2 | 338.0 | 2054.8 | 350.0 | 1200 | Φ89 | Φ159 ×2 | Φ159 | Φ108 | 4950×1950×1800 | |
| 40 | 873.2 | 372.0 | 1085.2 | 384.4 | 1334.8 | 396.4 | 1610.0 | 401.6 | 1898.0 | 418.4 | |||||||||
| 45 | 720.8 | 444.8 | 910.0 | 463.2 | 140.8 | 480.0 | 1400.8 | 495.2 | 677.2 | 508.4 | |||||||||

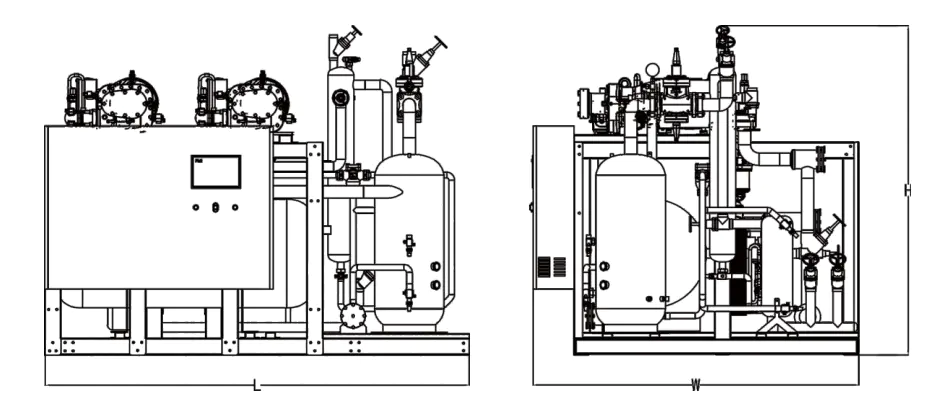

Vista detallada
Contáctenos
SOBRE NOSOTROS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Como China Unidad de Alta Temperatura FRASCOLD SPA Proveedores y Unidad de Alta Temperatura FRASCOLD SPA Fábrica,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. se especializa en soluciones de refrigeración eficientes, ecológicas y sostenibles. Aprovechando productos de alta calidad y tecnologías innovadoras, servimos a los sectores de alimentos, farmacéutico, químico y logística de cadena de frío, creando sistemas energéticamente eficientes y respetuosos con el medio ambiente para nuestros clientes y fomentando el desarrollo mutuamente beneficioso tanto para la industria como para el medio ambiente.
Certificado de honor
Noticias
-
¿Qué es un enfriador de aire industrial y cómo funciona en un sistema de refrigeración? Imagine una cámara frigorífica de tamaño mediano construida para contener alimentos congelados a -22°C. La unidad del compresor y el condens...
LEER MÁS -
Guía completa de selección de condensadores: elija el condensador adecuado para sistemas industriales y HVAC Un condensador es un componente central de transferencia de calor ampliamente utilizado en sistemas HVAC, refrigeración indus...
LEER MÁS -
Guía de personalización OEM de proveedores de ingeniería de almacenamiento en frío A medida que aumenta la demanda de mercados segmentados en la industria de la cadena de frío en el extranjero, muchos proveedores y comerciantes de ing...
LEER MÁS
CONTÁCTENOS
ENLACES RÁPIDOS
PRODUCTOS
INFORMACIÓN DE CONTACTO
- Correo electrónico: [email protected]
- Teléfono: +86-15258555916
- Dirección: 301 Punan Avenue, Pukou Street, ciudad de Shengzhou, ciudad de Shaoxing, provincia de Zhejiang, China
Derechos de autor © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Todos los derechos reservados.
浙ICP备2022034605号-1
Venta al por mayor Unidad de Alta Temperatura FRASCOLD SPA Fábrica
