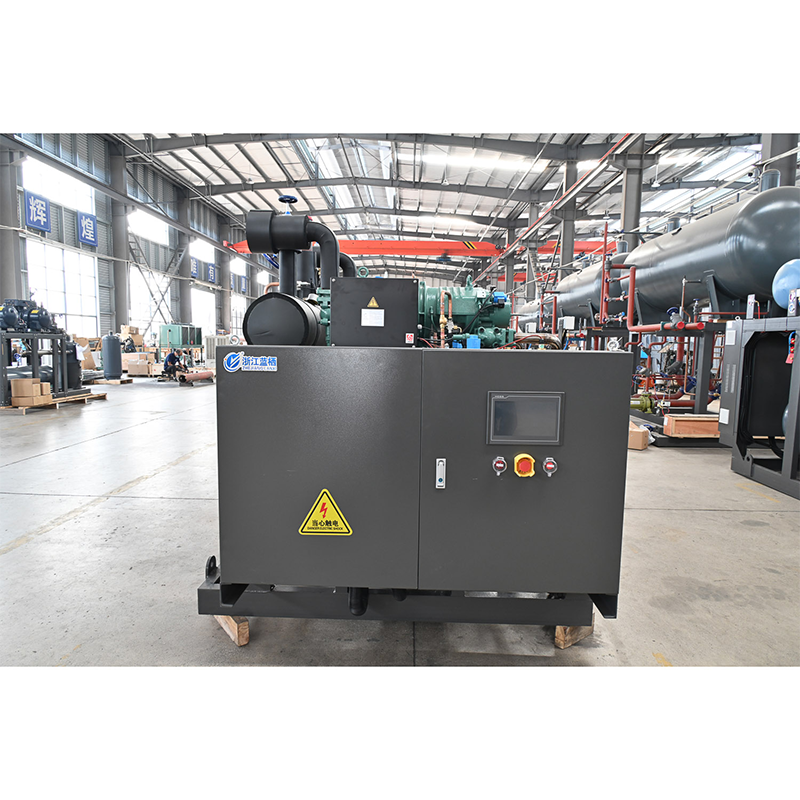

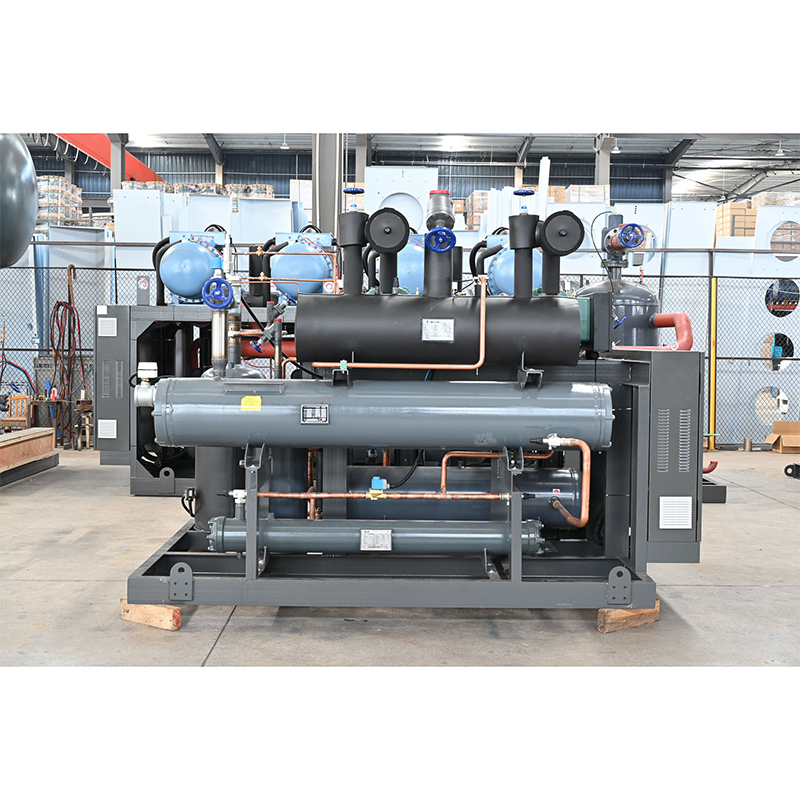

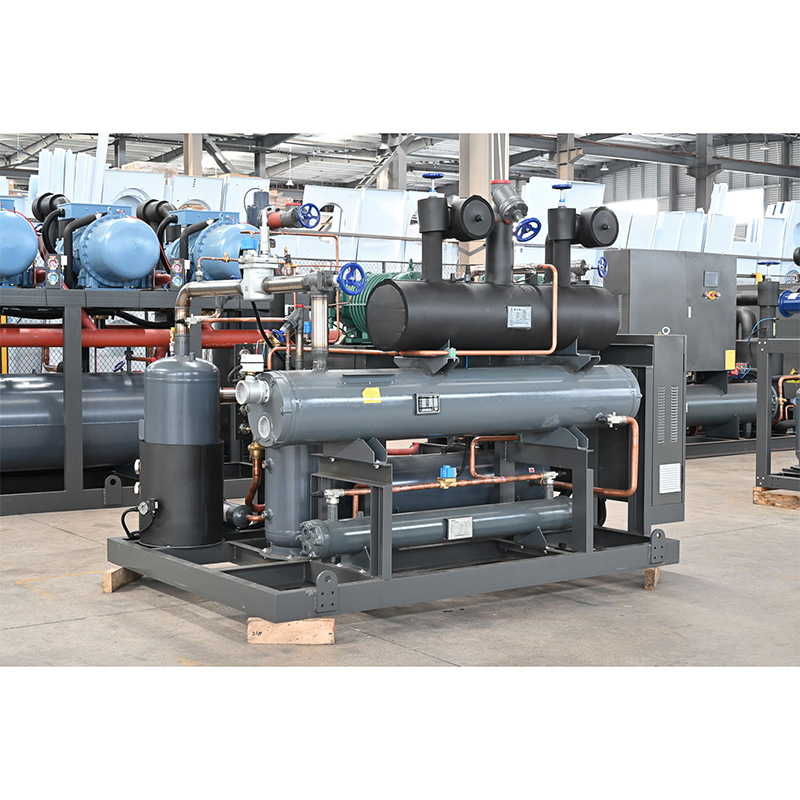

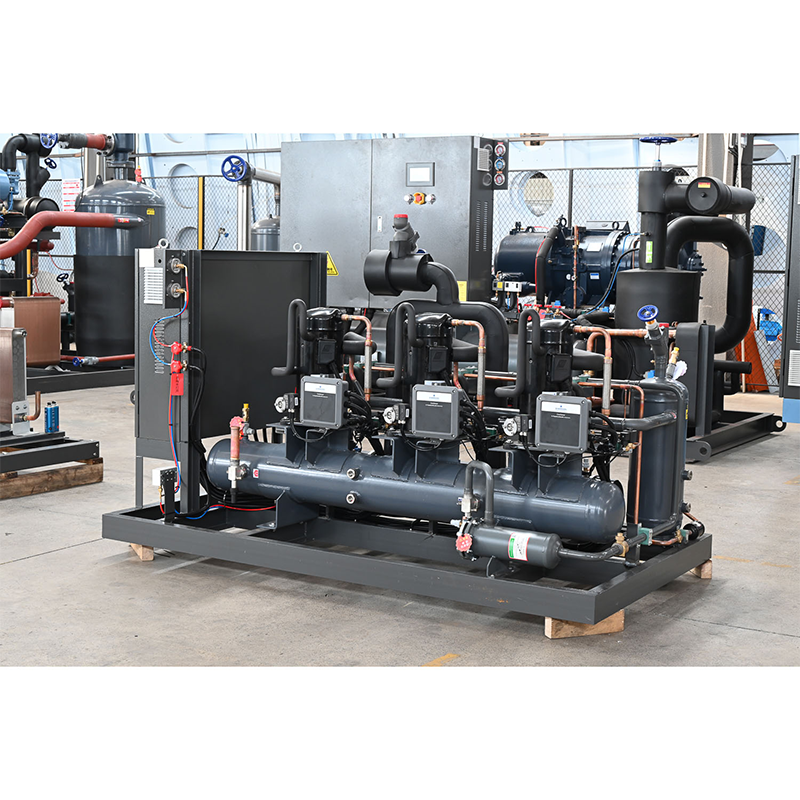

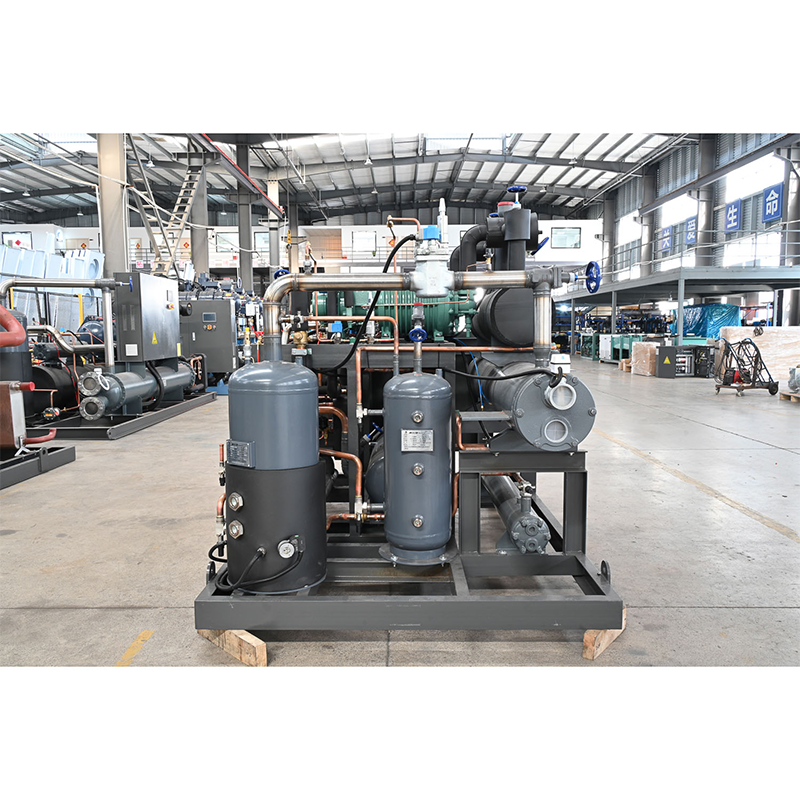

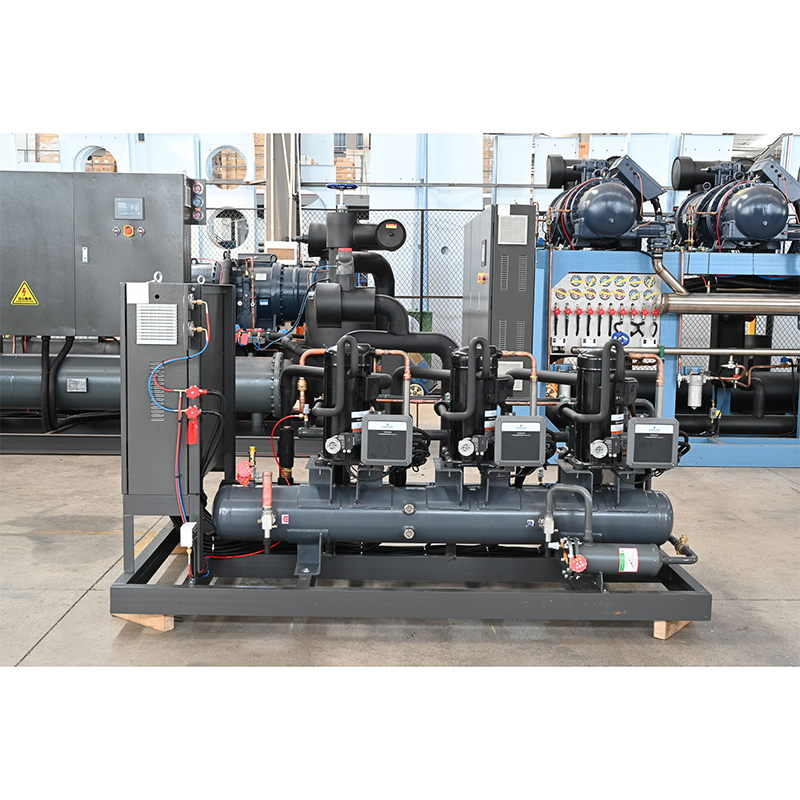

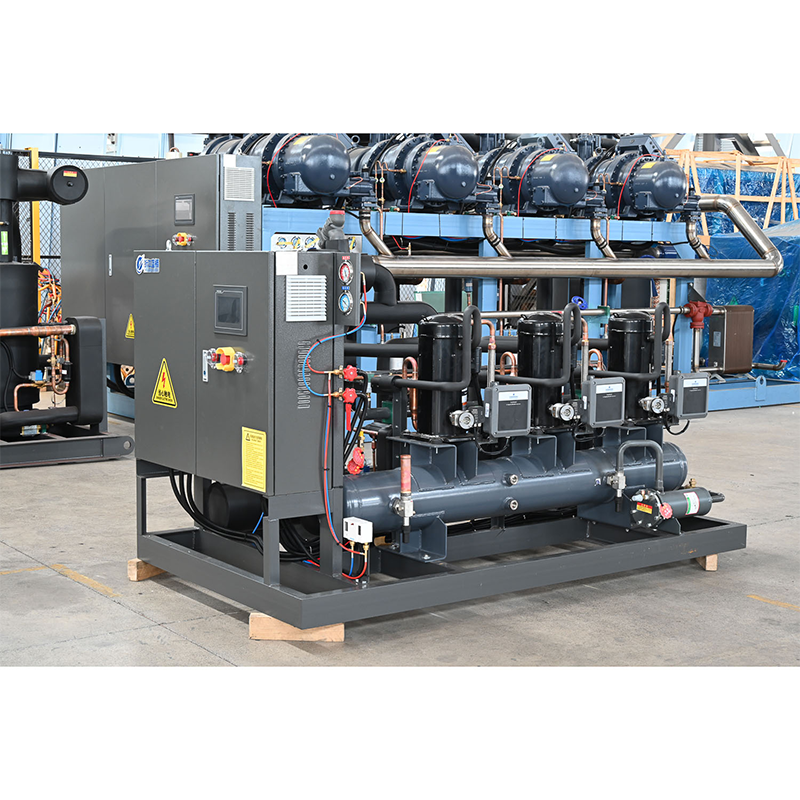

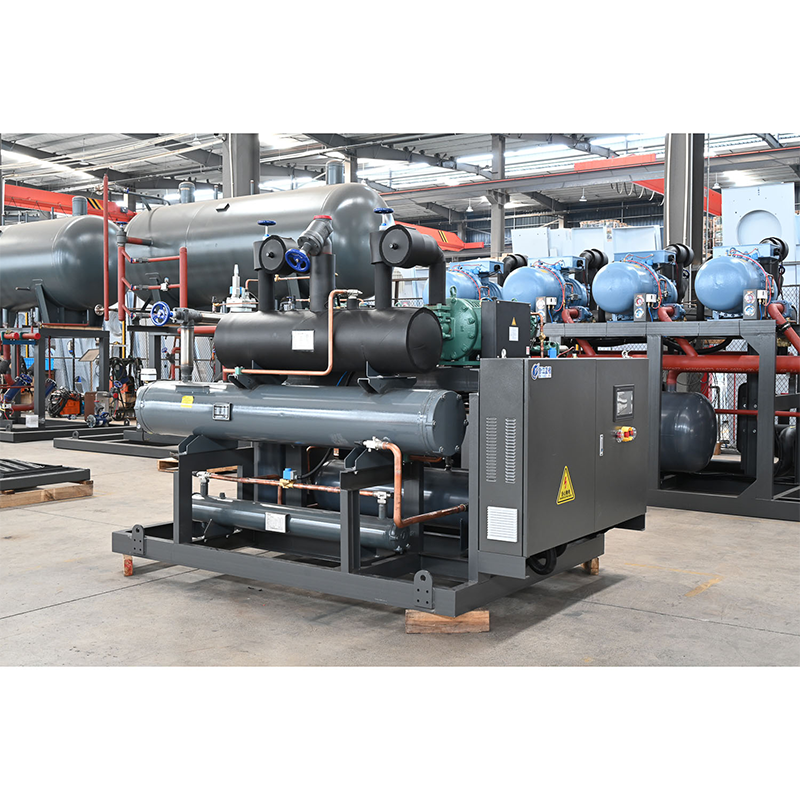

Unidad de tornillo de baja temperatura RFC
La unidad de tornillo de baja temperatura RFC es un sistema de refrigeración de alta eficiencia diseñado específicamente para entornos de baja temperatura. Se utiliza ampliamente en industrias como la alimentaria, farmacéutica, química y electrónica para necesidades de refrigeración y refrigeración a baja temperatura. La unidad utiliza un compresor de tornillo como componente principal, que ofrece gran estabilidad, bajo nivel de ruido y alta eficiencia. Las unidades de tornillo de baja temperatura de la serie RFC brindan un rendimiento de enfriamiento continuo y estable, lo que garantiza una alta eficiencia y confiabilidad incluso en condiciones extremas de baja temperatura.
El compresor de esta unidad utiliza tecnología avanzada internacionalmente, proporcionando un mayor índice de eficiencia energética y una menor tasa de fallas. Esto garantiza un excelente rendimiento a baja temperatura al tiempo que reduce el consumo de energía, lo que ayuda a los usuarios a ahorrar en costos operativos.
La unidad de tornillo de baja temperatura RFC está diseñada teniendo en cuenta el respeto al medio ambiente y utiliza refrigerantes ecológicos que cumplen con los estándares internacionales de protección ambiental. También cuenta con una fuerte capacidad de arranque a baja temperatura y una amplia adaptabilidad. Además, la unidad está equipada con un sistema de control inteligente que puede monitorear el estado operativo del equipo en tiempo real y ajustar automáticamente los parámetros operativos, asegurando un buen rendimiento bajo cargas variables.
Para mejorar la longevidad y la seguridad, la unidad de tornillo de baja temperatura RFC está equipada con múltiples funciones de protección de seguridad, como protección contra sobrecarga, protección contra sobrecalentamiento del compresor y protección contra escasez de aceite. Estas medidas reducen efectivamente el riesgo de fallas inesperadas y garantizan el funcionamiento estable del equipo.
Introducción a los parámetros del equipo
Vista detallada
Contáctenos
Introducción a los parámetros del equipo
| Modelo de unidad | Modelo de cámara (RFC) | Com, Cuartidad | Condensación temperatura.,(℃) | Temperatura de evaporación《℃) | embalse (L) | Tubería de suministro (mm) | Tubo de aspiración (mm) | Tubería de salida de gas (mm) | liquidoooo tubo de entrada (mm) | Dimensión (mm) (Largo x ancho x alto) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-RFCF-30L | SLD120 -30 (30 CV) | 1 | 35 | 58.7 | 19.8 | 48.8 | 19.1 | 40.1 | 18.4 | 32.5 | 17.9 | 25.8 | 15.6 | 80 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 55.9 | 24.0 | 46.3 | 22.8 | 37.0 | 21.5 | 29.7 | 20.9 | 23.0 | 20.0 | |||||||||
| 45 | 53.4 | 26.2 | 43.4 | 25.8 | 35.3 | 24.8 | 26.9 | 24.3 | 20.3 | 23.5 | |||||||||
| LXPL-BRFCF2 -60L | 2 | 35 | 117.4 | 39.6 | 97.6 | 38.2 | 80.2 | 368 | 65.0 | 35.8 | 51.6 | 35.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1650×1700 | |
| 40 | 111.8 | 48.0 | 92.6 | 45.6 | 74.0 | 43.0 | 59.4 | 41.8 | 46.0 | 40.0 | |||||||||
| 45 | 106.8 | 52.4 | 86.8 | 51.6 | 70.6 | 49.6 | 53.8 | 48.6 | 40.8 | 47.0 | |||||||||
| LXPL-BRFCF3 -90L | 3 | 35 | 176.1 | 59.4 | 146.4 | 57.3 | 120.3 | 55.2 | 97.5 | 53.7 | 77.4 | 52.8 | 200 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 167.7 | 72.0 | 138.9 | 68.4 | 111.0 | 64.5 | 89.1 | 62.7 | 69.0 | 60.0 | |||||||||
| 45 | 160.2 | 78.6 | 130.2 | 77.4 | 105.9 | 74.4 | 80.7 | 72.9 | 61.2 | 70.5 | |||||||||
| LXPL-BRFCF4 -120L | 4 | 35 | 234.8 | 79.2 | 195.2 | 76.4 | 160.4 | 73.6 | 133.0 | 71.6 | 103.2 | 70.4 | 250 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 223.6 | 96.0 | 185.2 | 91.2 | 148.0 | 86.0 | 118.8 | 83.6 | 92.0 | 80.0 | |||||||||
| 45 | 213.6 | 104.8 | 173.6 | 103.2 | 1412 | 99.2 | 107.6 | 97.2 | 81.6 | 94.0 | |||||||||
| LXPL-RFCF-40L | SLD140 -40 (40 CV) | 1 | 35 | 67.1 | 22.7 | 55.8 | 21.8 | 45.9 | 21.1 | 37.1 | 20.5 | 29.5 | 20.1 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 64.0 | 27.5 | 53.0 | 26.1 | 42.3 | 24.6 | 34.0 | 23.9 | 26.3 | 22.9 | |||||||||
| 45 | 61.1 | 30.0 | 49.6 | 29.6 | 40.4 | 28.4 | 30.8 | 27.9 | 23.4 | 26.9 | |||||||||
| LXPL-BRFCF2 -80L | 2 | 35 | 134.2 | 45.4 | 111.6 | 43.6 | 91.8 | 42.2 | 74.2 | 41.0 | 59.0 | 40.2 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 128.0 | 55.0 | 106.0 | 52.2 | 84.6 | 49.2 | 68.0 | 47.8 | 56.2 | 45.8 | |||||||||
| 45 | 122.2 | 60.0 | 99.2 | 59.2 | 80.8 | 56.8 | 61.6 | 55.8 | 46.8 | 53.8 | |||||||||
| LXPL-BRFCF3 -120L | 3 | 35 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 192.0 | 82.5 | 159.0 | 78.3 | 126.9 | 73.8 | 102.0 | 71.7 | 78.9 | 68.7 | |||||||||
| 45 | 183.3 | 90.0 | 148.8 | 88.8 | 121.2 | 85.2 | 92.4 | 83.7 | 70.2 | 80.7 | |||||||||
| LXPL-BRFCF4 -160L | 4 | 35 | 256.0 | 110.0 | 212.0 | 104.4 | 169.2 | 98.4 | 136.0 | 95.6 | 105.2 | 91.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | |||||||||
| 45 | 244.4 | 120.0 | 198.4 | 118.4 | 161.6 | 113.6 | 123.2 | 111.6 | 93.6 | 107.6 | |||||||||
| LXPL-RFCF-50L | SLD190 -50 (50 CV) | 1 | 35 | 94.5 | 32.0 | 78.6 | 30.7 | 64.6 | 29.7 | 53.2 | 28.9 | 41.6 | 28.3 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 90.1 | 38.7 | 74.6 | 36.7 | 59.5 | 34.6 | 47.8 | 33.6 | 37.0 | 32.3 | |||||||||
| 45 | 85.9 | 42.2 | 69.8 | 41.6 | 56.9 | 39.9 | 43.3 | 39.2 | 32.9 | 37.8 | |||||||||
| LXPL-BRFCF2 -100L | 2 | 35 | 189.0 | 64.0 | 157.2 | 61.4 | 1292 | 59.4 | 104.6 | 57.8 | 83.2 | 56.6 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 180.2 | 77.4 | 149.2 | 73.4 | 119.0 | 692 | 95.6 | 67.2 | 74.0 | 64.6 | |||||||||
| 45 | 171.8 | 84.4 | 139.6 | 83.2 | 113.8 | 798 | 86.6 | 78.4 | 65.8 | 756 | |||||||||
| LXPL-BRFCF3 -150L | 3 | 35 | 283.5 | 96.0 | 235.8 | 92.1 | 193.8 | 89.1 | 156.9 | 86.7 | 124.8 | 84.9 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 270.3 | 116.1 | 223.8 | 110.1 | 178.5 | 103.8 | 143.4 | 100.8 | 111.0 | 96.9 | |||||||||
| 45 | 257.7 | 126.6 | 209.4 | 124.8 | 170.7 | 119.7 | 129.9 | 117.6 | 98.7 | 113.4 | |||||||||
| LXPL-BRFCF4 -200L | 4 | 35 | 378.0 | 128.0 | 314.4 | 122.8 | 258.4 | 118.8 | 209.2 | 115.6 | 166.4 | 113.2 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 360.4 | 154.8 | 298.4 | 146.8 | 238.0 | 138.4 | 191.2 | 134.4 | 148.0 | 129.2 | |||||||||
| 45 | 343.6 | 166.8 | 279.2 | 166.4 | 227.6 | 159.6 | 173.2 | 156.8 | 131.6 | 151.2 | |||||||||
| Modelo de unidad | Modelo Com. (RFC) | Com. Cuartidad | Condensación temperatura (℃) | Temperatura de evaporación. (℃) | embalse (L) | Tubería de suministro (mm) | Tubo de aspiración (mm) | Tubería de salida de gas (mm) | liquidoooo tubo de entrada (mm) | Dimensión (mm) (largo x ancho x alto) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-RFCF-60L | SLD210 -60 (60 CV) | 1 | 35 | 104.4 | 35.3 | 86.8 | 34.0 | 71.3 | 32.8 | 57.8 | 31.9 | 45.9 | 31.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 99.5 | 42.8 | 82.5 | 40.5 | 65.8 | 38.3 | 529 | 37.1 | 40.9 | 35.7 | |||||||||
| 45 | 95.0 | 46.7 | 77.2 | 46.0 | 62.9 | 44.1 | 47.8 | 433 | 36.4 | 41.8 | |||||||||
| LXPL-BRFCF2 -120L | 2 | 35 | 208.8 | 70.6 | 173.6 | 68.0 | 142.6 | 65.6 | 115.6 | 63.8 | 91.8 | 624 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 199.0 | 85.6 | 165.0 | 81.0 | 131.6 | 76.6 | 105.8 | 74.2 | 81.8 | 71.4 | |||||||||
| 45 | 190.0 | 93.4 | 154.4 | 92.0 | 1258 | 88.2 | 956 | 86.6 | 72.8 | 836 | |||||||||
| LXPL-BRFCF3 -180L | 3 | 35 | 313.2 | 105.9 | 260.4 | 102.0 | 213.9 | 98.4 | 173.4 | 95.7 | 137.7 | 936 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 298.5 | 128.4 | 247.5 | 121.5 | 197.4 | 114.9 | 158.7 | 111.3 | 122.7 | 107.1 | |||||||||
| 45 | 285.0 | 140.1 | 231.6 | 138.0 | 188.7 | 1323 | 143.4 | 129.9 | 109.2 | 125.4 | |||||||||
| LXPL-BRFCF4 -240L | 4 | 35 | 417.6 | 141.2 | 347.2 | 136.0 | 285.2 | 131.2 | 231.2 | 127.6 | 1836 | 124.8 | 300 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 398.0 | 171.2 | 330.0 | 162.0 | 263.2 | 153.2 | 211.6 | 148.4 | 1636 | 1428 | |||||||||
| 45 | 380.0 | 186.8 | 308.8 | 184.0 | 251.6 | 1764 | 191.2 | 173.2 | 1456 | 167.2 | |||||||||
| LXPL-RFCF-70L | SLD230 -70 (70 CV) | 1 | 35 | 116.8 | 39.5 | 97.2 | 38.0 | 79.8 | 36.7 | 64.7 | 35.7 | 51.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 111.4 | 47.9 | 82.3 | 45.4 | 73.7 | 42.8 | 592 | 41.5 | 45.7 | 39.9 | |||||||||
| 45 | 106.3 | 52.2 | 86.4 | 51.5 | 70.4 | 49.4 | 53.5 | 48.5 | 40.7 | 46.8 | |||||||||
| LXPL-BRFCF2 -140L | 2 | 35 | 233.6 | 79.0 | 194.4 | 76.0 | 159.6 | 73.4 | 129.4 | 71.4 | 1028 | 70.0 | 250 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 222.8 | 95.8 | 174.6 | 90.8 | 147.4 | 85.6 | 118.4 | 83.0 | 91.4 | 79.8 | |||||||||
| 45 | 212.6 | 104.4 | 172.8 | 103.0 | 140.8 | 98.8 | 107.0 | 97.0 | 81.4 | 93.6 | |||||||||
| LXPL-BRFCF3 -210L | 3 | 35 | 350.4 | 118.5 | 291.6 | 114.0 | 239.4 | 110.1 | 194.1 | 107.1 | 154.2 | 105.0 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 334.2 | 143.7 | 276.9 | 136.5 | 221.1 | 128.4 | 177.6 | 124.5 | 137.1 | 119.7 | |||||||||
| 45 | 318.9 | 156.6 | 259.2 | 154.5 | 211.2 | 148.2 | 160.5 | 145.5 | 122.1 | 140.4 | |||||||||
| LXPL-BRFCF4 -280L | 4 | 35 | 467.2 | 158.0 | 388.8 | 152.0 | 319.2 | 146.8 | 258.8 | 142.8 | 205.6 | 140.0 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 445.6 | 191.6 | 369.2 | 181.6 | 294.8 | 171.2 | 236.8 | 166.0 | 1828 | 159.6 | |||||||||
| 45 | 425.2 | 208.8 | 3456 | 206.0 | 281.6 | 197.6 | 214.0 | 194.0 | 1628 | 187.2 | |||||||||
| LXPL-RFCF-75L | SLD250 -75 (75 CV) | 1 | 35 | 124.3 | 42.0 | 103.4 | 40.4 | 84.9 | 39.0 | 68.8 | 38.0 | 54.7 | 37.2 | 200 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 118.5 | 50.9 | 98.2 | 48.3 | 78.4 | 45.6 | 62.9 | 44.2 | 48.6 | 42.5 | |||||||||
| 45 | 113.1 | 55.5 | 91.9 | 54.8 | 74.9 | 52.5 | 57.0 | 51.6 | 43.3 | 49.7 | |||||||||
| LXPL-BRFCF2 -150L | 2 | 35 | 248.6 | 84.0 | 206.8 | 80.8 | 1698 | 78.0 | 137.6 | 76.0 | 109.4 | 74.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 237.0 | 1018 | 196.4 | 96.6 | 1568 | 91.2 | 1258 | 88.4 | 97.2 | 85.0 | |||||||||
| 45 | 226.2 | 111.0 | 183.8 | 109.6 | 149.8 | 105.0 | 114.0 | 103.2 | 86.6 | 99.4 | |||||||||
| LXPL-BRFCF3 -225L | 3 | 35 | 372.9 | 126.0 | 310.2 | 121.2 | 254.7 | 117.0 | 206.4 | 114.0 | 164.1 | 111.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 355.5 | 152.7 | 294.6 | 144.9 | 235.2 | 136.8 | 188.7 | 132.6 | 145.8 | 127.5 | |||||||||
| 45 | 339.3 | 166.5 | 375.7 | 164.4 | 244.7 | 157.5 | 171.0 | 154.8 | 129.9 | 149.1 | |||||||||
| LXPL-BRFCF4 -300L | 4 | 35 | 497.2 | 168.0 | 413.6 | 161.6 | 339.6 | 156.0 | 275.3 | 152.0 | 218.8 | 148.8 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 474.0 | 203.6 | 392.8 | 193.2 | 313.6 | 182.4 | 251.6 | 176.8 | 194.4 | 170.0 | |||||||||
| 45 | 452.4 | 222.0 | 367.6 | 219.2 | 299.6 | 210.0 | 228.0 | 2064 | 173.2 | 198.8 | |||||||||
| Modelo de unidad | Modelo de cámara (RFC) | Com, Cuartidad | Condensación temperatura (℃) | Temperatura de evaporación. (℃) | embalser (L) | Tubería de suministro (mm) | succión tubo (mm) | salida de gas tubo (mm) | liquidoooo tubo de entrada (mm) | Dimensión (mm) (Largo x ancho x alto) | |||||||||
| -20 | -25 | -30 -35 | -40 | ||||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-RFCF-80L | SLD290 -80 (80 CV) | 1 | 35 | 144.7 | 48.9 | 120.3 | 47.1 | 98.9 | 45.4 | 80.1 | 44.2 | 63.7 | 43.3 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 137.9 | 59.3 | 114.3 | 56.2 | 91.2 | 53.0 | 73.3 | 51.4 | 56.6 | 49.4 | |||||||||
| 45 | 131.6 | 64.7 | 106.9 | 63.7 | 87.1 | 61.1 | 66.3 | 60.0 | 50.4 | 57.9 | |||||||||
| LXPL-BRFCF2 -180L | 2 | 35 | 289.4 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 160.2 | 88.4 | 127.4 | 86.6 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 275.8 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 146.6 | 102.8 | 113.2 | 98.8 | |||||||||
| 45 | 263.2 | 129.4 | 213.8 | 127.4 | 174.2 | 122.2 | 132.6 | 120.0 | 100.8 | 115.8 | |||||||||
| LXPL-BRFCF3 -240L | 3 | 35 | 434.1 | 146.7 | 360.9 | 141.3 | 196.7 | 136.2 | 240.3 | 132.6 | 191.1 | 129.9 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 413.7 | 177.9 | 342.9 | 168.6 | 273.6 | 159.0 | 219.9 | 154.2 | 169.8 | 148.2 | |||||||||
| 45 | 394.8 | 194.1 | 320.7 | 191.1 | 261.3 | 183.3 | 198.9 | 180.0 | 151.2 | 173.7 | |||||||||
| XPL-BRFCF4 -320L | 4 | 35 | 578.8 | 195.6 | 481.2 | 188.4 | 395.6 | 181.6 | 320.4 | 176.8 | 254.8 | 173.2 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 551.6 | 237.2 | 457.2 | 224.8 | 364.8 | 212.0 | 293.2 | 205.6 | 226.4 | 197.6 | |||||||||
| 45 | 526.4 | 258.8 | 427.6 | 254.8 | 348.4 | 244.4 | 265.2 | 240.0 | 201.6 | 231.6 | |||||||||
| LXPL-RFCF -100L | SLD350 -100 (100 CV) | 1 | 35 | 173.5 | 58.7 | 144.3 | 56.4 | 118.6 | 54.5 | 96.0 | 53.1 | 26.3 | 51.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 165.4 | 71.1 | 137.1 | 67.4 | 109.4 | 63.6 | 87.9 | 61.7 | 67.9 | 59.3 | |||||||||
| 45 | 157.9 | 77.5 | 128.2 | 76.4 | 104.5 | 73.3 | 79.5 | 72.0 | 60.4 | 69.4 | |||||||||
| LXPL-BRFCF2 -200L | 2 | 35 | 347.0 | 117.4 | 288.6 | 112.8 | 237.2 | 109.0 | 192.0 | 106.2 | 152.6 | 103.8 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2200×1800 | |
| 40 | 330.8 | 142.2 | 274.2 | 134.8 | 218.8 | 127.2 | 175.8 | 123.4 | 135.8 | 118.6 | |||||||||
| 45 | 315.8 | 155.0 | 256.4 | 152.8 | 209.0 | 146.6 | 159.0 | 144.0 | 120.8 | 138.8 | |||||||||
| LXPL-BRFCF3 -300L | 3 | 35 | 520.5 | 176.1 | 432.9 | 169.2 | 3558 | 163.5 | 288.0 | 159.3 | 228.9 | 155.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 496.2 | 213.3 | 411.3 | 202.2 | 328.2 | 190.8 | 263.7 | 185.1 | 203.7 | 177.9 | |||||||||
| 45 | 473.7 | 232.5 | 384.6 | 229.2 | 313.5 | 219.9 | 238.5 | 216.0 | 181.2 | 208.2 | |||||||||
| LXPL-BRFCF4 -400L | 4 | 35 | 694.0 | 234.8 | 577.2 | 225.6 | 474.4 | 218.0 | 384.0 | 212.4 | 30.52 | 2076 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 661.6 | 284.4 | 548.4 | 269.6 | 437.6 | 2932 | 351.6 | 216.8 | 271.6 | 237.2 | |||||||||
| 45 | 631.6 | 310.0 | 512.8 | 305.6 | 418.0 | 293.2 | 318.0 | 288.0 | 241.6 | 277.6 | |||||||||
| LXPL-RFCF -125L | SLD420 -125 (125 CV) | 1 | 35 | 202.3 | 68.4 | 168.2 | 658 | 138.2 | 63.5 | 111.9 | 61.8 | 89.0 | 60.5 | 250 | Φ57 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 192.8 | 82.9 | 1598 | 785 | 127.5 | 74.1 | 102.4 | 71.9 | 79.2 | 69.1 | |||||||||
| 45 | 184.0 | 90.4 | 149.5 | 89.1 | 121.8 | 85.5 | 92.7 | 83.9 | 70.4 | 80.9 | |||||||||
| LXPL-BRFCF2 -250L | 2 | 35 | 404.6 | 1368 | 336.4 | 131.6 | 276.4 | 127.0 | 2238 | 123.6 | 178.0 | 121.0 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 385.6 | 1658 | 319.6 | 157.0 | 255.0 | 148.2 | 204.8 | 143.8 | 158.4 | 138.2 | |||||||||
| 45 | 368.0 | 180.8 | 299.0 | 178.2 | 243.6 | 171.0 | 158.4 | 167.8 | 140.8 | 161.8 | |||||||||
| LXPL-BRFCF3 -370L | 3 | 35 | 606.9 | 205.2 | 504.6 | 197.4 | 414.6 | 190.5 | 335.7 | 158.4 | 267.0 | 181.5 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 578.4 | 248.7 | 479.4 | 235.5 | 382.5 | 222.3 | 307.2 | 215.7 | 218.7 | 207.3 | |||||||||
| 45 | 552.0 | 271.2 | 448.5 | 267.3 | 365.4 | 256.5 | 378.1 | 251.7 | 211.2 | 242.7 | |||||||||
| LXPL-BRFCF4 -500L | 4 | 35 | 809.2 | 273.6 | 672.8 | 263.2 | 552.8 | 254.0 | 447.6 | 247.2 | 356.0 | 242.0 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 771.2 | 331.6 | 639.2 | 314.0 | 510.0 | 296.4 | 409.6 | 287.6 | 316.8 | 276.4 | |||||||||
| 45 | 736.0 | 361.6 | 598.0 | 356.4 | 487.2 | 342.0 | 370.8 | 355.6 | 281.6 | 323.6 | |||||||||
| Modelo de unidad | Modelo Com. (RFC) | Com. Cuartidad | Condensación temperatura (℃) | Temperatura de evaporación. (℃) | embalser (L) | Suministro tubo (mm) | succión tubo (mm) | Tubería de salida de gas (mm) | liquidoooo tubo de entrada (mm) | Dimensión (mm) (largo x ancho x alto) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Capacidad de refrigeración/entrada de energía (kw) | |||||||||||||||||||
| LXPL-RFCF -140L | SLD470 -140 (140 CV) | 1 | 35 | 228.5 | 77.3 | 190.1 | 74.3 | 156.2 | 71.7 | 126.5 | 69.9 | 100.6 | 68.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 217.9 | 93.7 | 180.6 | 88.7 | 144.1 | 83.8 | 115.7 | 81.2 | 894 | 78.1 | |||||||||
| 45 | 207.9 | 102.1 | 168.9 | 100.7 | 137.6 | 96.6 | 104.7 | 94.8 | 79.6 | 91.5 | |||||||||
| LXPL-BRFCF2 -280L | 2 | 35 | 457.0 | 154.6 | 380.2 | 148.6 | 312.4 | 143.4 | 253.0 | 1398 | 201.2 | 136.8 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 4358 | 187.4 | 361.2 | 77.4 | 288.2 | 167.6 | 231.4 | 1624 | 178.8 | 156.2 | |||||||||
| 45 | 4158 | 204.2 | 337.8 | 201.4 | 275.2 | 193.2 | 209.4 | 1896 | 159.2 | 183.0 | |||||||||
| LXPL-BRFCF3 -420L | 3 | 35 | 685.5 | 231.9 | 570.3 | 222.9 | 468.6 | 213.3 | 379.5 | 209.7 | 301.8 | 2052 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 653.7 | 281.1 | 541.8 | 266.1 | 432.3 | 251.4 | 346.5 | 243.6 | 268.2 | 234.3 | |||||||||
| 45 | 623.7 | 306.3 | 506.7 | 302.1 | 412.8 | 289.8 | 314.1 | 284.4 | 238.8 | 274.5 | |||||||||
| LXPL-BRFCF4 -560L | 4 | 35 | 914.0 | 309.2 | 760.4 | 297.2 | 624.8 | 286.8 | 506.0 | 279.6 | 402.4 | 273.6 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 871.6 | 374.8 | 722.4 | 354.8 | 576.4 | 335.2 | 462.8 | 334.8 | 357.6 | 312.4 | |||||||||
| 45 | 831.6 | 408.4 | 675.6 | 402.8 | 550.4 | 386.4 | 418.8 | 379.2 | 318.4 | 366.0 | |||||||||
| LXPL-RFCF -160L | SLD520 -160 (160 CV) | 1 | 35 | 2528 | 85.5 | 210.3 | 82.2 | 172.8 | 79.4 | 139.9 | 77.3 | 111.2 | 75.7 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 |
| 40 | 241.0 | 103.6 | 199.7 | 98.2 | 159.4 | 92.7 | 128.1 | 89.9 | 98.9 | 86.4 | |||||||||
| 45 | 230.0 | 113.0 | 186.9 | 111.4 | 152.3 | 106.9 | 115.9 | 104.9 | 88.1 | 101.2 | |||||||||
| LXPL-BRFCF2 -320L | 2 | 35 | 505.6 | 171.0 | 420.6 | 164.4 | 345.6 | 158.8 | 279.8 | 154.6 | 222.4 | 151.4 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | |
| 40 | 482.0 | 202.7 | 399.4 | 196.4 | 318.8 | 185.4 | 1562 | 179.8 | 197.8 | 172.8 | |||||||||
| 45 | 460.0 | 226.0 | 373.8 | 222.8 | 304.6 | 213.8 | 231.8 | 209.8 | 176.2 | 202.4 | |||||||||
| LXPL-BRFCF3 -480L | 3 | 35 | 758.4 | 256.5 | 630.9 | 246.6 | 518.4 | 328.2 | 419.7 | 231.9 | 333.6 | 227.1 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 4100×2100×2500 | |
| 40 | 723.0 | 310.8 | 599.1 | 294.6 | 478.2 | 370.8 | 384.3 | 269.7 | 296.7 | 259.2 | |||||||||
| 45 | 690.0 | 339.0 | 560.7 | 334.2 | 4569 | 320.7 | 347.7 | 314.7 | 264.3 | 303.6 | |||||||||
| LXPL-BRFCF4 -640L | 4 | 35 | 1011.2: | 342..0 | 841.2 | 328.8 | 691.2 | 317.6 | 559.6 | 309.2 | 444.8 | 302.8 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4900×2300×2700 | |
| 40 | 964.0 | 414.4 | 798.8 | 392.8 | 637.6 | 370.8 | 512.4 | 3596 | 395.6 | 345.6 | |||||||||
| 45 | 920.0 | 452.0 | 747.6 | 445.6 | 6092 | 426.7 | 463.6 | 4196 | 352.4 | 404.8 | |||||||||
| LXPL-RFCF -200L | SLD640 -200 (200 CV) | 1 | 35 | 317.3 | 107.3 | 263.9 | 1032 | 2168 | 99.6 | 175.6 | 97.0 | 139.6 | 95.0 | 300 | Φ57 | Φ108 | Φ76 | Φ76 | 2400×1700×1800 |
| 40 | 302.5 | 130.0 | 250.7 | 123.2 | 200.0 | 116.3 | 160.7 | 112.8 | 124.2 | 108.4 | |||||||||
| 45 | 288.6 | 141.8 | 234.5 | 139.8 | 191.1 | 134.1 | 145.4 | 131.7 | 110.5 | 127.0 | |||||||||
| LXPL-BRFCF2 -400L | 2 | 35 | 634.6 | 214.6 | 527.6 | 206.4 | 433.6 | 1992 | 351.2 | 194.0 | 279.2 | 190.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | |
| 40 | 605.0 | 260.0 | 501.4 | 246.4 | 400.0 | 232.6 | 321.4 | 225.6 | 248.4 | 216.8 | |||||||||
| 45 | 577.2 | 283.6 | 469.0 | 2796 | 382.2 | 268.2 | 321.4 | 2634 | 221.0 | 254.0 | |||||||||
| LXPL-BRFCF3 -600L | 3 | 35 | 951.9 | 321.9 | 791.7 | 309.6 | 650.4 | 298.8 | 526.8 | 291.0 | 418.8 | 285.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | |
| 40 | 907.5 | 390.0 | 752.1 | 369.6 | 600.0 | 348.9 | 482.1 | 338.4 | 372.6 | 325.2 | |||||||||
| 45 | 865.8 | 425.4 | 703.5 | 419.4 | 573.3 | 402.3 | 436.2 | 395.1 | 331.5 | 381.0 | |||||||||
| LXPL-BRFCF4 -B00L | 4 | 35 | 1269.2 | 429.2 | 1055.6 | 412.8 | 867.2 | 398.4 | 702.4 | 388.0 | 558.4 | 380.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | |
| 40 | 1210.0 | 520.0 | 1002.8 | 492.8 | 800.0 | 465.2 | 642.8 | 451.2 | 496.8 | 433.6 | |||||||||
| 45 | 1154,4! | 567.2 | 938.0 | 559.2 | 764.4 | 536.4 | 581.6 | 526.8 | 442.0 | 508.0 | |||||||||
Vista detallada
Contáctenos
SOBRE NOSOTROS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Como China Unidad de tornillo de baja temperatura RFC Proveedores y Unidad de tornillo de baja temperatura RFC Fábrica,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. se especializa en soluciones de refrigeración eficientes, ecológicas y sostenibles. Aprovechando productos de alta calidad y tecnologías innovadoras, servimos a los sectores de alimentos, farmacéutico, químico y logística de cadena de frío, creando sistemas energéticamente eficientes y respetuosos con el medio ambiente para nuestros clientes y fomentando el desarrollo mutuamente beneficioso tanto para la industria como para el medio ambiente.
Certificado de honor
Noticias
-
¿Qué es un enfriador de aire industrial y cómo funciona en un sistema de refrigeración? Imagine una cámara frigorífica de tamaño mediano construida para contener alimentos congelados a -22°C. La unidad del compresor y el condens...
LEER MÁS -
Guía completa de selección de condensadores: elija el condensador adecuado para sistemas industriales y HVAC Un condensador es un componente central de transferencia de calor ampliamente utilizado en sistemas HVAC, refrigeración indus...
LEER MÁS -
Guía de personalización OEM de proveedores de ingeniería de almacenamiento en frío A medida que aumenta la demanda de mercados segmentados en la industria de la cadena de frío en el extranjero, muchos proveedores y comerciantes de ing...
LEER MÁS
CONTÁCTENOS
ENLACES RÁPIDOS
PRODUCTOS
INFORMACIÓN DE CONTACTO
- Correo electrónico: [email protected]
- Teléfono: +86-15258555916
- Dirección: 301 Punan Avenue, Pukou Street, ciudad de Shengzhou, ciudad de Shaoxing, provincia de Zhejiang, China
Derechos de autor © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Todos los derechos reservados.
浙ICP备2022034605号-1
Venta al por mayor Unidad de tornillo de baja temperatura RFC Fábrica
